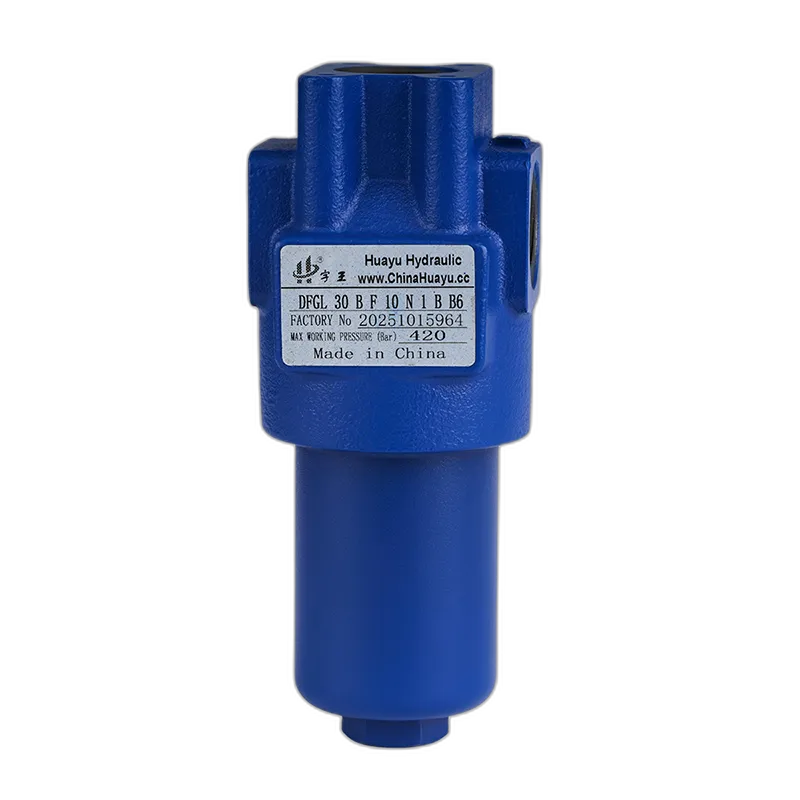

DHGL Series

High pressure filter

Connection type and size:

Threaded connection: G½" G¾" G1¼" G1½"

SAE Flange connection: DN20 DN32 DN50

Maximum flow rate up to 1320 I/min

Maximum working pressure: 420 bar

Bypass valve opening pressure: 6 bar

Transmitter opening pressure: 5 bar

Temperature range: -29℃ to 100℃

Head: Cast iron

Filter bowl: Carbon steel

Seals: NBR nitrile rubber (standard)

Or FKM fluororubber (customizable)

Filter element material: Fiberglass and wire mesh

Suitable for mineral oil, lubricating oil, fire-resistant oil, and rapidly biodegradable media.

(If used for water-based or special media, please consult our sales department.)
