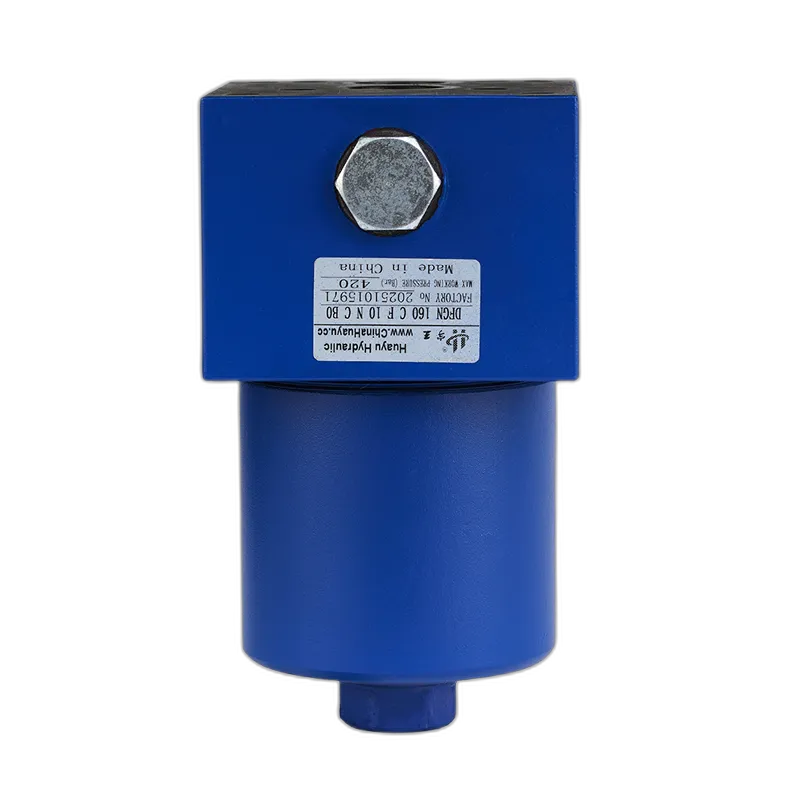

DHGN Series

High pressure overhead filter

Connection type and size:

Inlet and outlet diameter: DN17.5 DN21.4 DN41

Maximum flow rate up to 620 l/min

Maximum working pressure: 315 bar

Bypassvalveopeningpressure: 6 bar

Transmitter alarm pressure: 5 bar

Temperature range: -29℃ to 100℃

Head: Cast iron

Filter bowl: Carbon steel

Seals: NBR nitrile rubber (standard)

Or FKM fluororubber (customizable)

Filter element material: Fiberglass and wire mesh

Suitable for mineral oil, lubricating oil, fire-resistant oil, and rapidly biodegradable media.

(If used for water-based or special media, please consult our sales department.)
