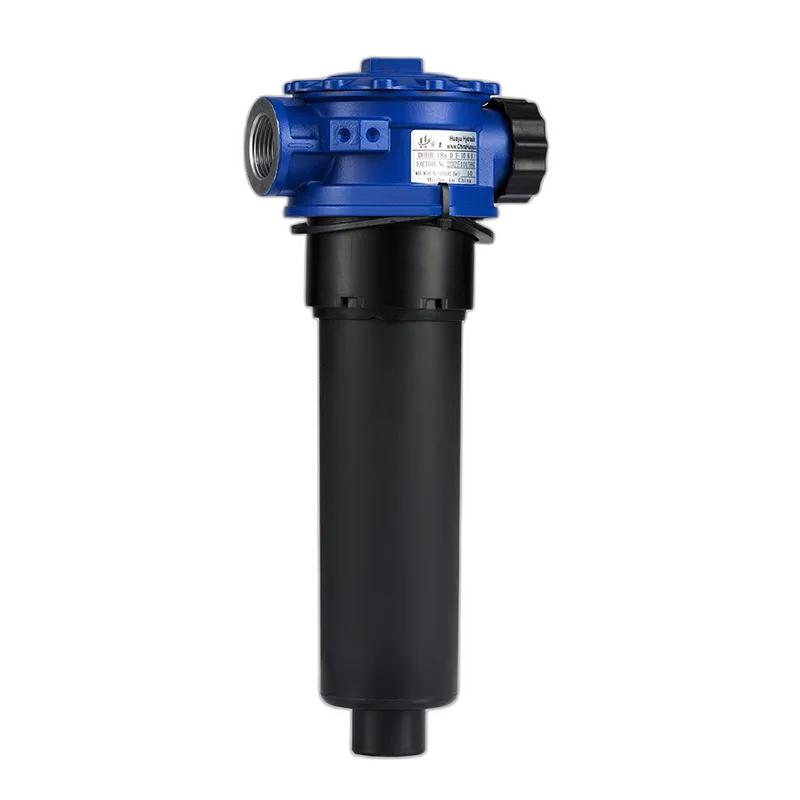

DHHB Series

Return Filter

Connection type and size:

Threaded connection: G½" G¾" G1" G1¼" G1½"

SAE Flange connection: DN40DN50DN65

Maximum flow rate up to 850 l/min

Maximum working pressure: 10 bar

Bypass valve opening pressure: 3 bar

Transmitter opening pressure: 2 bar

Temperature range: -29℃ to 100℃

Head: Cast aluminium

Filter bowl: PolyamideSeals:

NBR nitrile rubber (standard)

Or FKM fluororubber (customizable)

Filter element material:Fiberglass and wire mesh

Suitable for mineral oil, lubricating oil, fire-resistant oil, and rapidly biodegradable media.

(If used for water-based or special media, please consult our sales department.)
