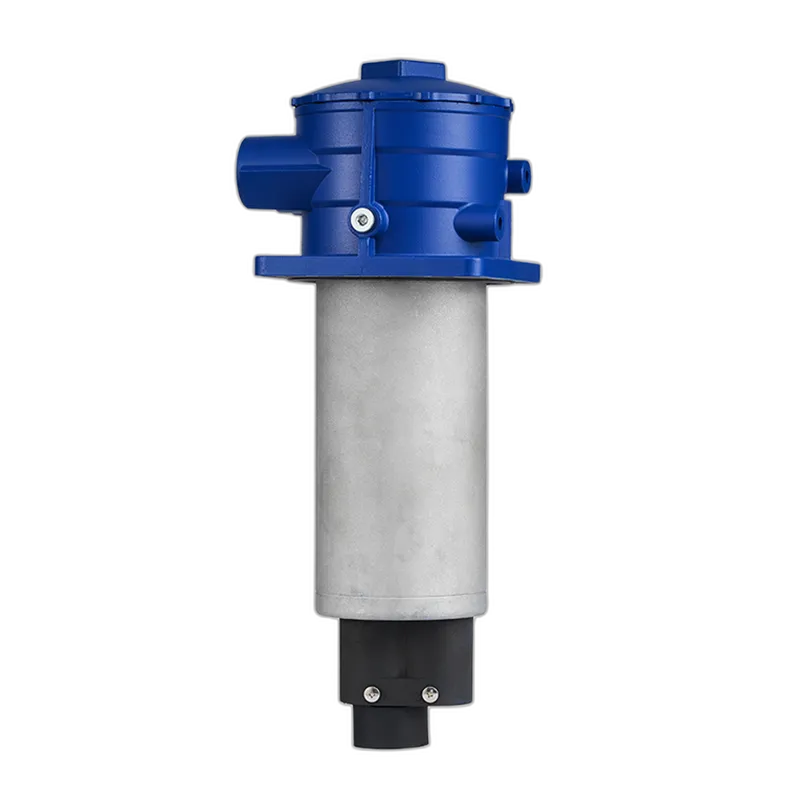

DHHC Series

Suction-Return filter

Connection type and size

Threaded connection: G¾" G1" G1¼" G1½"

Maximum flow rate up to 850 l/min

Maximum working pressure: 10 bar

Bypass valve opening pressure: 2.5 bar

Transmitter opening pressure: 2 bar

Temperature range: -29°C to 100°C

Head: Cast aluminium

Filter bowl: Carbon steel

Seals: NBR nitrile rubber (standard)

Or FKM fluororubber (customizable)

Filter element material: Fiberglass and wire mesh

Suitable for mineral oil, lubricating oil, fire-resistant oil, and rapidly biodegradable media.

(If used for water-based or special media, please consult our sales department.)
