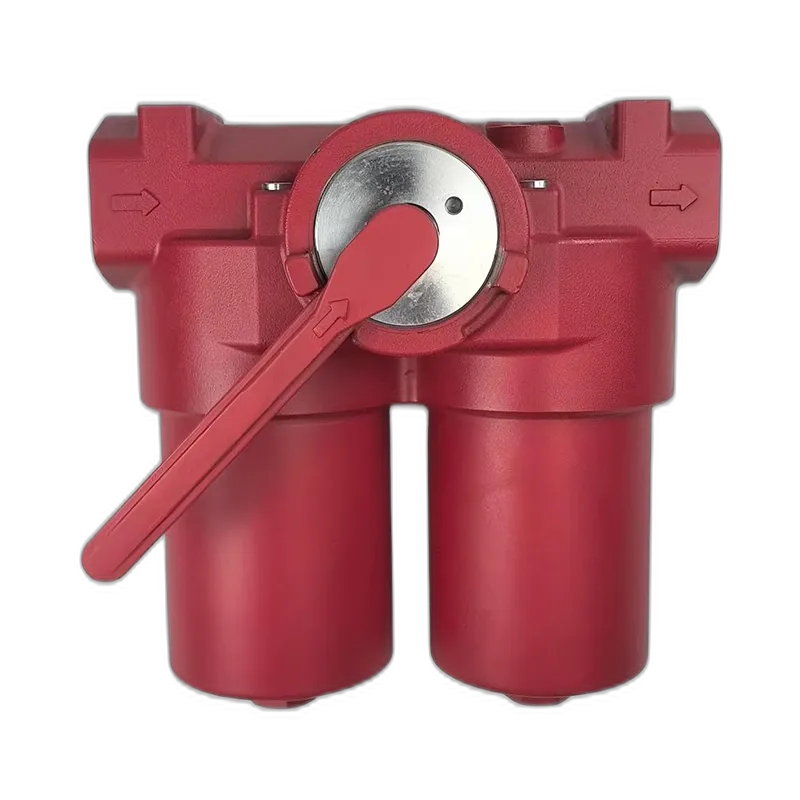

DHST Series

Duplex bowls line filter

Connection type and size:

Threaded connection: G1/2" G%/4" G1" G11/4" G11/2"

SAE Flange connection: DN25 DN38

Maximum flow rate up to 400 I/min

Maximum working pressure: 63 bar

Bypass valve opening pressure: 7bar

Transmitter opening pressure: 5 bar

Temperature range: -10℃ to 100℃

Head: Cast aluminium

Filter bowl: Aluminium

Seals: NBR nitrile rubber (standard)

Or FKM fluororubber (customizable)

Filter element material: Fiberglass and wire mesh

Suitable for mineral oil, lubricating oil, fire-resistant oil, and rapidly biodegradable media.

(If used for water-based or special media, please consult our sales department.)
