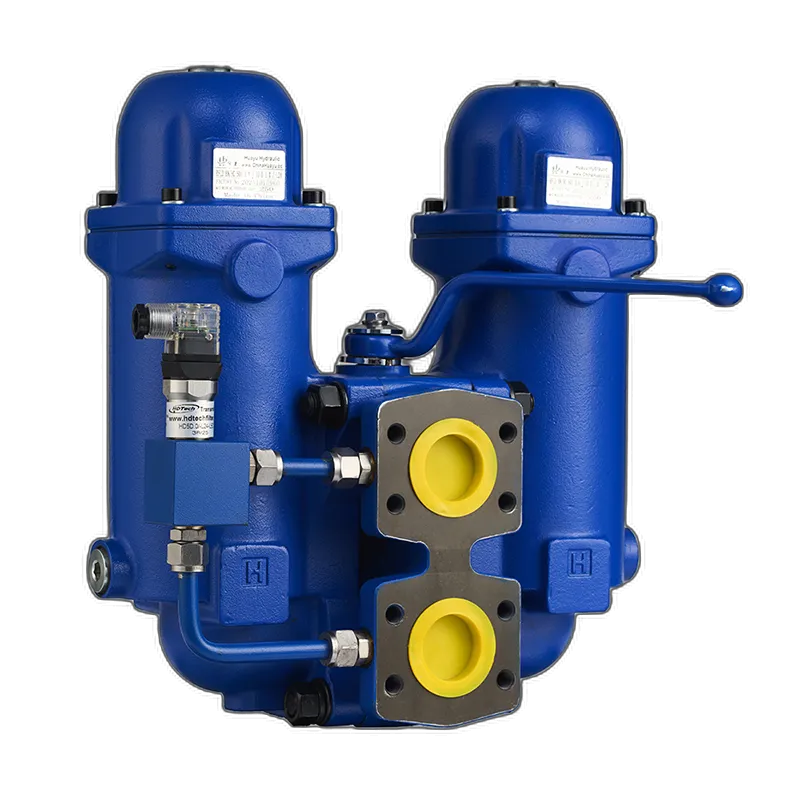

DHSU Series

Duplex bowls line filter

Connection type and size:Threaded connection: G1" G11/2"

SAE Flange connection: DN25 DN40 DN50 DN65 DN80 DN100

DIN Flange connection: DN80 DN100

Switch type: Stainless steel balls

Maximum flow rate up to 2500 I/min

Maximum working pressure: 25 bar

Bypass valve opening pressure: 3bar

Transmitter opening pressure: 2 bar

Temperature range: -10°C to 100°C

Head: Cast iron

Filter barrel: Cast iron

Seals: NBR nitrile rubber (standard)

Or FKM fluororubber (customizable)

Filter element material: Fiberglass and wire mesh

Suitable for mineral oil, lubricating oil, fire-resistant oil, and rapidly biodegradable media.

(If used for water-based or special media, please consult our sales department.)
