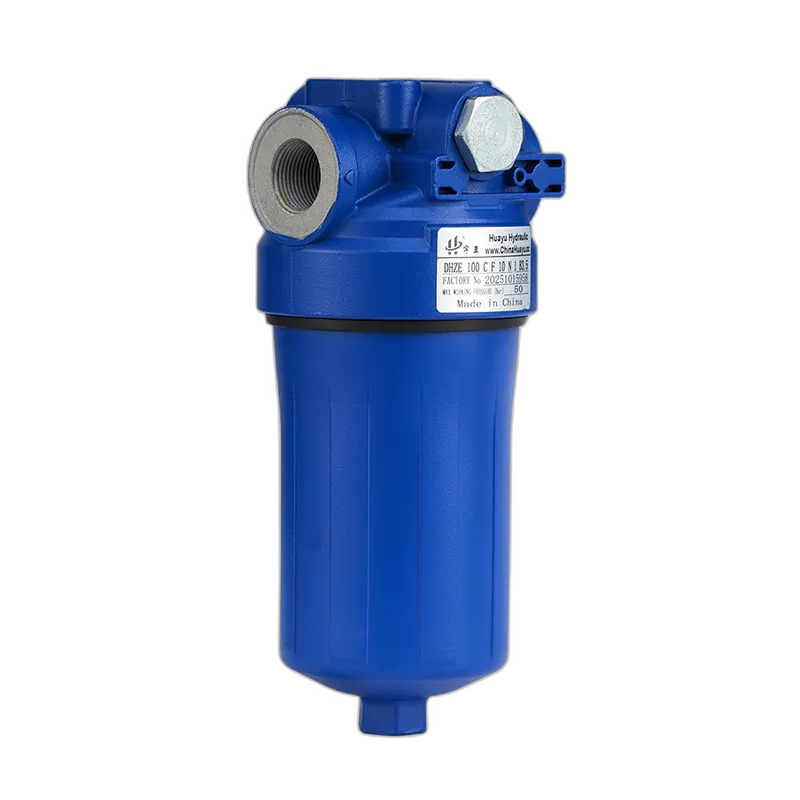

DHZE Series

In-line filter

Connection type and size:

Threaded connection: G¾" G1" M26x1.5 M33x2

Maximum flow rate up to 130 L/min

Maximum working pressure: 50 bar

Bypass valve opening pressure: 3.5bar

Transmitter opening pressure: 2.5 bar

Temperature range: -10℃ to 80℃

Head: Cast aluminium

Filter bowl: Aluminium

Seals: NBR nitrile rubber (standard)

or FKM fluororubber (customizable)

Filter element material: Fiberglass and metal mesh

Suitable for mineral oil, lubricating oil, fire-resistant oil, and rapidly biodegradable media.

(If used for water-based or special media, please consult our sales department.)
