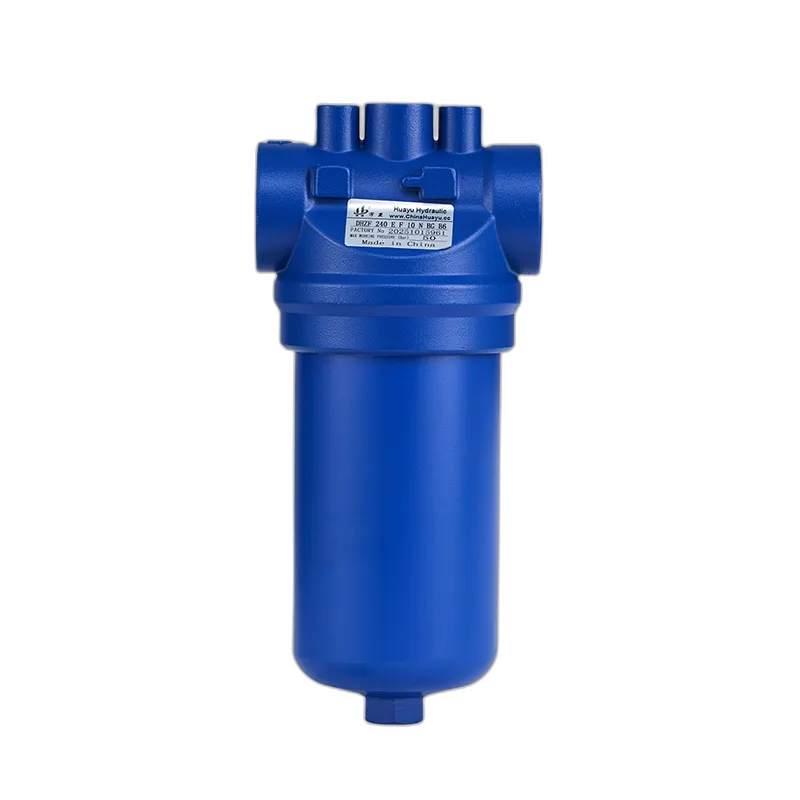

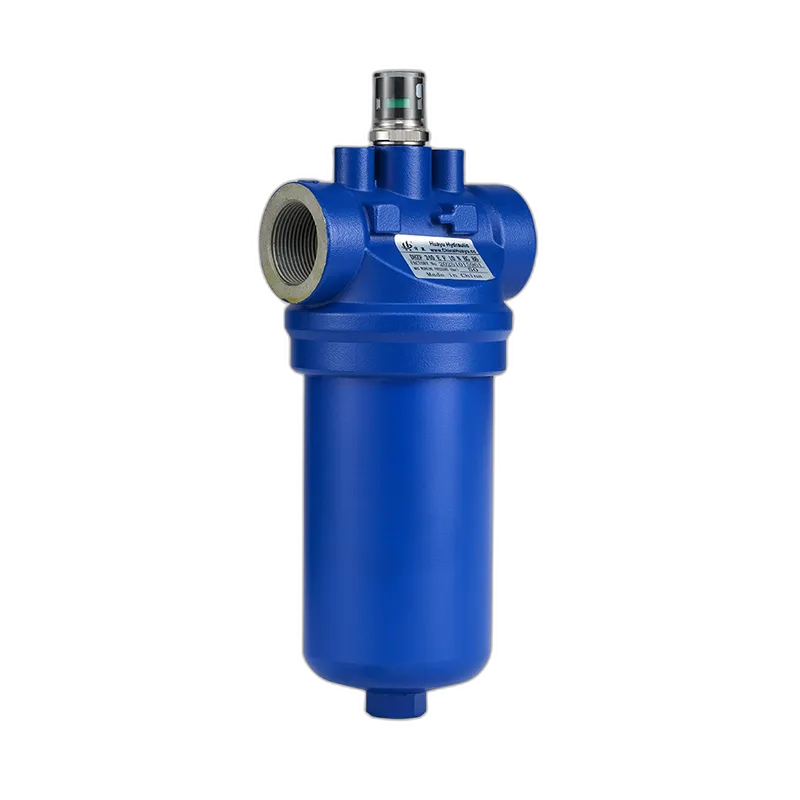

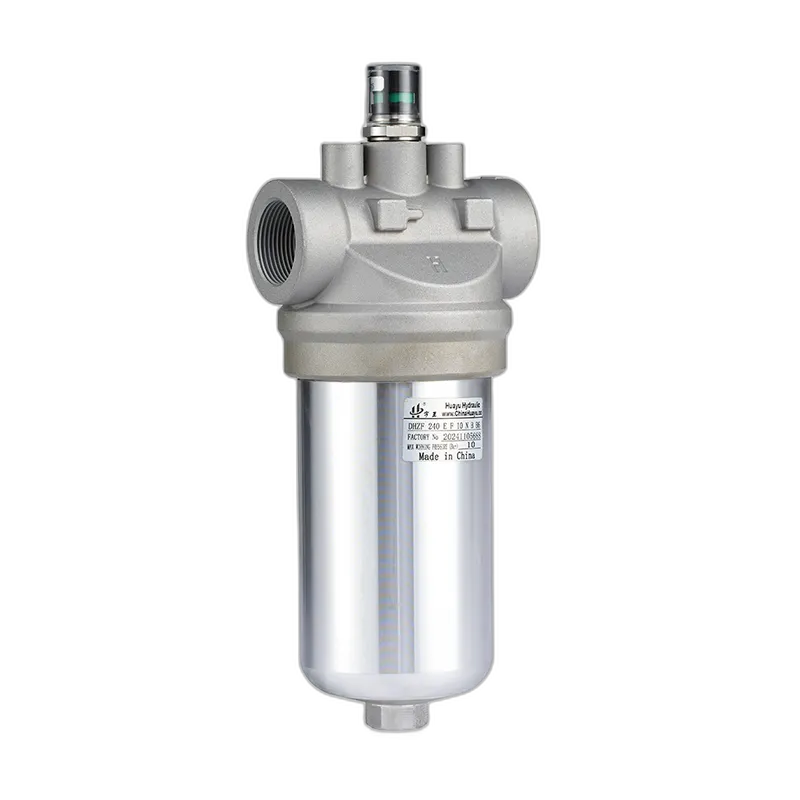

DHZF Series

In-line filter

Connection type and size:

Threaded connection: M18x1.5 G½" G1¼"

Maximum flow rate up to 280 l/min

Maximum working pressure: 50 bar

Bypass valve opening pressure: 6 bar

Transmitter opening pressure: 5 bar

Temperature range：-30℃ to 100℃

Head:Cast aluminium

Filter bowl: Aluminium

Seals: NBR nitrile rubber (standard)

Or FKM fluororubber (customizable)

Filter element material: Fiberglass and metal mesh

Suitable for mineral oil, lubricating oil, fire-resistant oil, and rapidly biodegradable media.

(If used for water-based or special media, please consult our sales department.)
