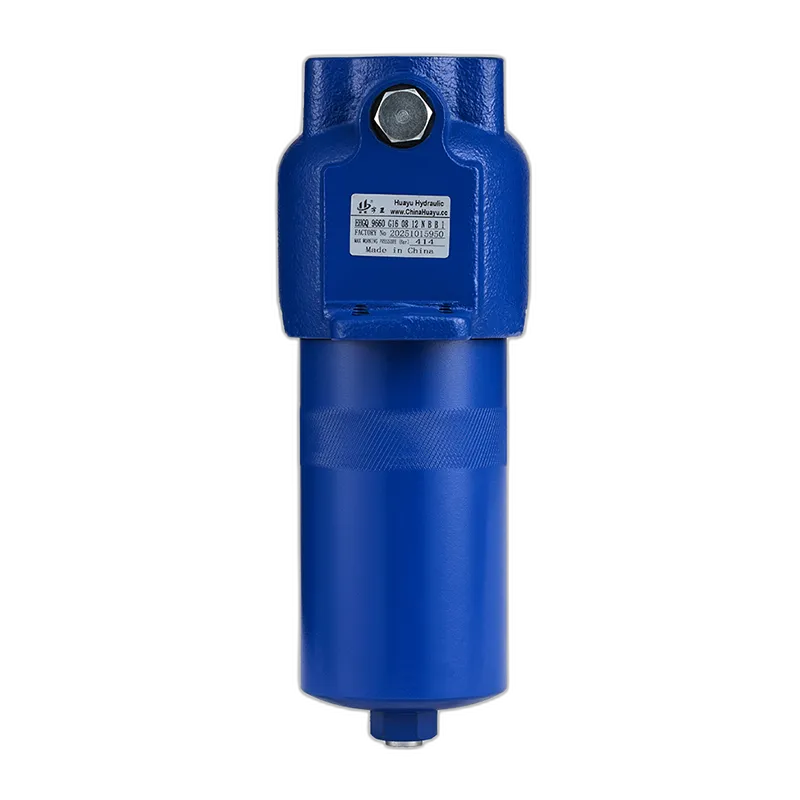

EHGQ Series

High pressure filter

Connection type and size:

BSP Threaded connection: G1" G1¼" G1½"

SAE Flange connection: 1" 1¼" 1½"

Top panel connection: K-type

Side panel connection: S-type

Maximum flow rate up to 560 l/min

Maximum working pressure: 414 bar

Bypass valve opening pressure: 3. 4 bar

Transmitter opening pressure: 2.4 bar

Temperature range: -29℃ to 120℃

Head: Cast iron

Filter bowl: Carbon steel

Seals: NBR nitrile rubber (standard)

Or FKM fluororubber (customizable)

Filter element material: Fiberglass

Suitable for mineral oil, lubricating oil, fire-resistant oil, and rapidly biodegradable media.

(If used for water-based or special media, please consult our sales department.)
