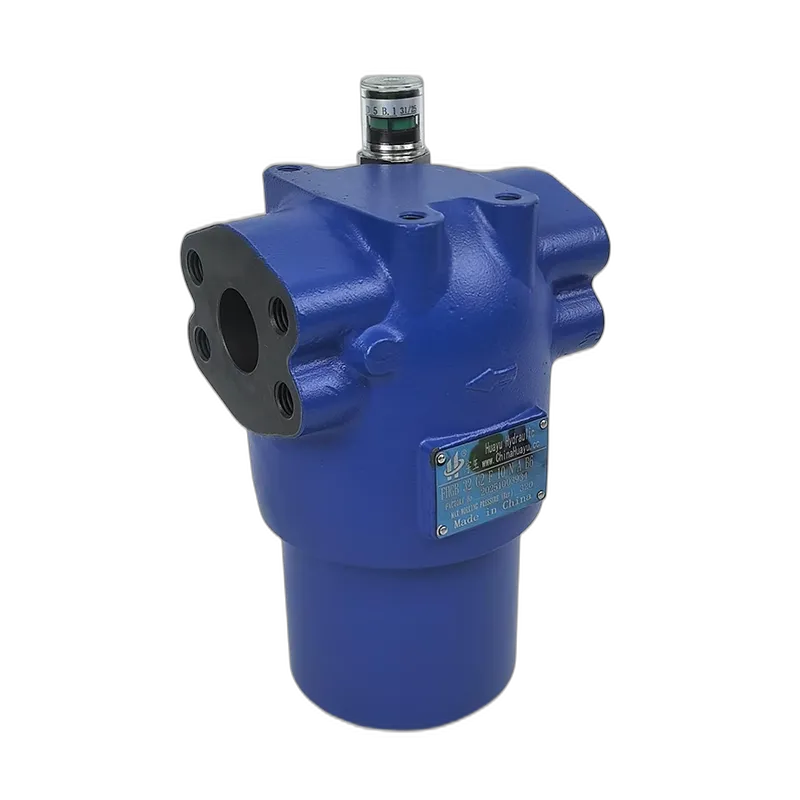

FHGB Series

High pressure filter

Connection type and size:

Threaded connection: 1/2" 3/4" 1" 1¼" 1½"

SAE Flange connection: 3/4" 1" 1¼"

Maximum flow rate up to 450 I/min

Maximum working pressure: 420 bar

Bypass valve opening pressure: 6 bar

Transmitter opening pressure: 5 bar

Temperature rang: -25℃ to 110℃

Head: Cast iron

Filter bowl: Carbon steel

Seals: NBR nitrile rubber (standard)

Or FKM fluororubber (customizable)

Filter element material: Fiberglass,

Stainless steel wire mesh

Suitable for mineral oil, lubricating oil, fire-resistant oil, and rapidly biodegradable media.

(If used for water-based or special media, please consult our sales department.)
