Nitrogen Charging Cart

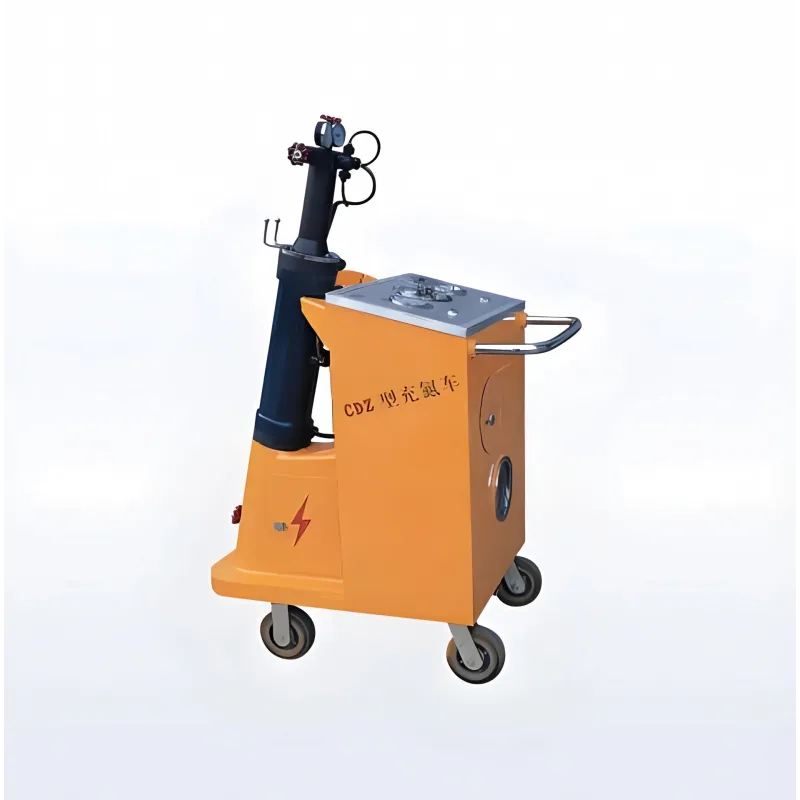

CDZ series nitrogen charging cart is the professional equipment applies to filling nitrogen orincreasing the nitrogen pressure of hydraulics-bladder accumulator,piston accumulator,hydraulicdiaphragm accumulators and other high-pressure container.Filing the nitrogen to the accumulatorwith nitrogen bottle directly,its highest nitrogen pressure is 13.5MPa.If the precharge pressure ofthe accumulator is over 13.5MPa,the nitrogen filling cart can achieved.The maximum pressure canupto 42MPa.

This type of nitrogen filling cart is composed by the three parts of the hydraulic system,pneumatic and circuit.Pilot reversing valve of the hydraulic system controls two-wayforcing valve doing the reciprocating motion continuously,inhaled nitrogen from nitrogenbottles to the gas chamber,and the other gas chamber would press the nitrogen whichhave been inhaled through a valve into the storage device or pressure vessel.Whenaccumulator pressure reaches the preset tone value of nitrogen,the hydraulic system stopto work when the pressure gauge for electric connection gives the signal
The working schematic diagram showed as below.
